VCS

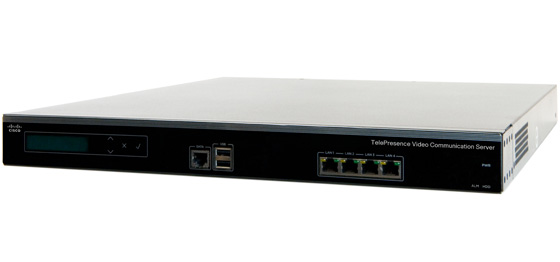

Сервер управления вызовами Cisco CTI-VCS-EXPRESS-K9

Цена: 688781 руб

Артикул: CTI-VCS-EXPRESS-K9
Производитель:Cisco
Доставка: от 800 р. по Москве
Наличие:В транзите
VCS Expressway


Table 1. Features and Benefits

Feature

Benefit

User interface
• The web interface supports Internet Explorer 7, 8, and 9; Firefox 3 and later; and Chrome.

Supported telepresence endpoints
• Cisco VCS Expressway is compatible with any standards-compliant H.323 or SIP videoconferencing or telepresence device. Provisioning and configuration are supported only for Cisco TelePresence endpoints.

Management interfaces
• Support for industry standards such as HTTP and Secure HTTP (HTTPS), XML, Simple Network Management Protocol (SNMP v1, v2, and v3), Secure Copy Protocol (SCP) and Secure Shell (SSH) Protocol
• Embedded setup wizard for initial configuration
• Integration with Cisco TelePresence Management Server (TMS) Version 12.5 or later
• Support for call logging and diagnostics

Architecture (Cisco VCS Expressway Appliance)
• Secure appliance-based architecture
• Flash memory and hard drive

Traversal services
• Cisco TelePresence Expressway technology
• STUN discovery and STUN relay services
• Firewall traversal STUN-compliant
• H.460.18/19-compliant
• H.460.18 client-proxy support
• Support for H.460.19 multiplexed media
• SIP support

Resilience and reliability
• Ability to deploy Cisco VCS Expressway in a redundant (six) cluster
• Ability to share licenses across a cluster
• Ability for registrations to survive system restart
• Ability to replicate configuration for clusters
• Ability for the Cisco VCS Expressway process to recycle within seconds
• Support for Cisco VCS Expressway H.225 Alternate Gatekeeper

Session control and registrations
• Support for manual registration of H.323 and SIP endpoints
• Support for H.225/Q.931, H.245 call-control routed mode, and non-call routed mode
• Support for H.323-SIP Interworking Encryption
• Support for H.323-SIP Interworking DuoVideo
• Support for registration of H.323 ID and E.164 aliases and services
• Support for Unicode (UTF-8) registration for global implementation
• Support for URI dialing
• Support for direct call signaling among neighbored Cisco VCSs, border controllers, and gatekeepers
• Support for call policy management (RFC 3880),including call policy and user policy (Cisco TelePresence FindMe)
• Support for conference hunting for multipoint-control-unit (MCU) cluster
• Support for call routed mode
• Support for call loop detection

Zone control and bandwidth management
• Support for remote zone monitoring
• Support for remote zone redundancy
• Support for up to 200 neighbor zones (including Cisco VCSs, border controllers, gatekeepers, and SIP proxies)
• Support for subzone area definition for bandwidth management
• Support for flexible zone configuration with named zones and default zone
• Support for forwarding of requests to neighbor zones
• Support for registration control (open, specifically allow, and specifically deny)
• Support for interzone bandwidth management: Definable call by call
• Maximum bandwidth per call
• Maximum aggregate bandwidth for all neighboring zones
• Support for intrazone bandwidth management: Definable call by call
• Maximum bandwidth per call
• Maximum aggregate bandwidth
• Support for auto-down-speeding if call exceeds per-call maximum
• Support for gateway load balancing
• Support for automatic network failover
• Support for capacity warnings for users and administrators

Language
• English

Physical dimensions

(H x W x D)
• 1.72 x 16.8 x 18 in. (43.5 x 426 x 457.2 mm)
• 1-rack unit (1RU) rack-mount chassis

Interfaces
• Four 10/100/1000 BASE-TX Ethernet ports (RJ-45) (front)
• One RS-232 console port (RJ-45) (front)

Weight
• 17.6 lb (8 kg) (unpacked)

Power
• Auto-sensing 250W (maximum) 580 BTU per hour power supply
• 90-264 VAC full range at 47-63 Hz

Cooling system
• Five 40-millimeter fans for system cooling

System control and indications
• One power LED
• One alarm LED
• One power on/off switch (rear)
• Four act/link/10/100/1000 LEDs on Ethernet ports

Environmental data
• Operating temperatures: 32 to 104°F (0 to 40°C)
• Storage temperatures: -4 to 140°F (-20 to 60°C)
• Relative humidity: 10 to 90% (noncondensing)

Servers for virtual environment
• Cisco UCS B- and C-Series platforms or similar platform. Please refer to the list of platforms that Cisco recommends to run the Virtualized VCS Application

Certification
• LVD 73/23/EC
• EMC 89/366/ECC

Note: Cisco VCS Version X7 is ICSA Labs certified.

Awards

Approvals and compliance
• Directive 73/23/EEC (Low Voltage Directive)
• Standard EN 60950
• Directive 89/336/EEC (EMC Directive)
• Standard EN 55022, Class A
• Standard EN 55024
• Standard EN 61000-3-2/-3-3
• Approved according to UL 60950 and CAN/CSA C22.2 No. 60950
• Compliance with FCC15B Class A
• Joint Interoperability Test Command (JITC)

Table 2. Network, Management, and Security Specifications

Network
• Support for DNS addressing
• Support for IPv4 and IPv6 simultaneously
• IPv4 and IPv6 translation services

Interfaces
• Four 10/100/1000 BASE-TX Ethernet ports (RJ-45) (front)
• One RS-232 console port (RJ-45) (front)

Supported RFCs
• RFCs 2543, 3261, 3264, 1889, 3265, 3325, 3515, 3891, 3892, 2327, 4566, 5626, 5627, 5389, and 5766

Security
• Secure management with HTTPS, SSH, and SCP
• Secure file transfer
• Inactivity timeout
• Ability to lock down IP services
• Authentication required on HTTP(S), Telnet, SSH, and SCP
• H.235 authentication support
• Transport Layer Security (TLS) for SIP signaling
• Roles-based password-protected GUI user access
• Ability to enforce strict passwords
• Ability to disable root access over Telnet of SSH

Management
• Support for industry standards such as Telnet, HTTP(S), XML, SNMP, SCP, and SSH
• Embedded setup wizard for initial configuration
• Advanced management support and configuration with Cisco TMS 12.6 or later
• Call logging and diagnostics
• Local time-zone aware
• Port usage tool

Ordering Information

To order Cisco VCS Expressway, visit the Cisco Ordering Home Page and refer to Table 3.

Table 3. Ordering Information for Cisco VCS Expressway

Product Name

Part Number

Cisco TelePresence Video Communication Server Expressway

(VCS Expressway Appliance)

Comes with: Cisco TelePresence Video Communication Server, Expressway feature, 5 traversal calls, Gateway feature, 1800 TURN Relay option, Device Provisioning feature, cables

CTI-VCS-EXPRESS-K9

Cisco TelePresence Video Communication Server Expressway

(Virtualized Application)

Comes with: Cisco TelePresence Video Communication Server, Expressway feature, 5 traversal calls, Gateway feature, 1800 TURN Relay option, Device Provisioning feature, VCS-Dual Network Interface feature

CTI-VMVCS-EXPWY-K9

Ordering Options for the Cisco VCS Expressway

5 Traversal Calls for Cisco VCS Expressway

LIC-VCSE-5

10 Traversal Calls for Cisco VCS Expressway

LIC-VCSE-10

20 Traversal Calls for Cisco VCS Expressway

LIC-VCSE-20

50 Traversal Calls for Cisco VCS Expressway

LIC-VCSE-50

Additional 10 Non-traversal calls for Cisco VCS Expressway

LIC-VCS-10

Additional 20 Non-traversal calls for Cisco VCS Expressway

LIC-VCS-20

Additional 50 Non-traversal calls for Cisco VCS Expressway

LIC-VCS-50

Additional 200 Non-traversal calls for Cisco VCS Expressway

LIC-VCS-200

Additional 300 Non-traversal calls for Cisco VCS Expressway

LIC-VCS-300

Enable Device Provisioning for Cisco VCS Control

LIC-VCS-DEVPROV

VCS-Dual Network Interface for Cisco VCS Expressway

(VCS Expressway Appliance Only)

LIC-VCS-DI

VCS FindMe Application for Cisco VCS Expressway

LIC-VCS-FINDME

VCS Enhanced OCS Collaboration

LIC-VCS-OCS
