Model |

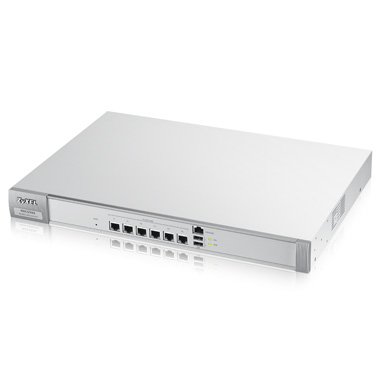

NXC5500 |
Product name |
|
Port Density |
10/100/1000 Mbps LAN ports |
6 |
USB Port |
2 |
Performance |
Throughput (Gbps) |
6 |
Managed AP number (default/max.) |
64/512 |
WLAN Features |
Wireless security (WPA/WPA2-PSK, Enterprise) |
Yes |
Dynamic channel selection |
Yes |
Wireless multicast setting |
Yes |
AP load balancing |
Yes |
AP planning and site-survey |
Yes (AP planning and coverage detection) |
ZyMESH |
Licensed service |
Band select |
Yes |
Client signal threshold |
Yes |
Auto healing |
Yes |
Security Features |
IEEE 802.1X |
Yes |
Layer-2 isolation |
Yes |
Web authentication |
Yes |
Stateful firewall |
Yes |
MAC filtering |
Yes |
RADIUS authentication |
Yes |
Microsoft AD authentication |
Yes |
LDAP authentication |
Yes |
Embedded RADIUS server |
Yes (4096 user) |
Identity-based user security management |
Yes |
Wireless intrusion detection |
Rogue AP detection and containment |
Control and Provisioning |
Managed AP discovery |
Broadcast/DHCP option/DNS/Manual |
CAPWAP |
Yes |
AP data forwarding mode |
Distributed (local bridge) and Centralized (data tunnel) |
Management interface |
HTTP/HTTPS/Telnet/SSH/SNMP |
Output power control |
Yes |
Dynamic channel assignment |
Yes |
Network |
VLANs |
Yes |
DHCP client |
Yes |
DHCP relay, server |
Yes |
NAT |
Yes |
Static routing |
1024 |
Policy routing |
1024 |
Access Control |
MAC access control list |
Yes |
MAC authentication |
Yes, nternal and external RADIUS |
Guest account generator |
Yes (2048 user) |
Customizable web login portal |
Yes |
QoS |
WMM/power save |
Yes |
DiffServ marking |
Yes |
AP load balancing |
Yes |
Management Features |
CLI with SSH |
Yes |
Web UI with SSL |
Yes |
SNMP |
v1, v2c, v3 |
Multi-level administration roles |
Admin, guest operator |
User/Application management |
Authentication |
RADIUS/Microsoft AD/LDAP/Local |
Local user database |
Yes (4096) |
User/group policy |
Yes |
Captive portal |
Yes |
External portal page |
Yes |
Page upload |
Yes |
Other |
System diagnostic tool |
Yes |
Certification |
EMC |
- EMI and susceptibility (Class A)
- FCC Part 15.107 and 15.109
- CE EN55022, EN55024
- ERP Lot 6
- BSMI CNS13438
|
Safety |
- LVD EN60950-1:A12
- BSMI CNS14336
|
Power Requirement |
Power supply |
12VDC, 100~240VAC |
Physical Specifications |
Item |
Dimensions (WxDxH) (mm/in.) |
438 x 302.7 x 44/17.24 x 11.92 x 1.73 |
Weight (kg/lb.) |
4.750/10.47 |
Packing |
Dimensions (WxDxH) (mm/in.) |
680 x 425 x 190/26.77 x 16.73 x 7.48 |
Weight (kg/lb.) |
8.525/18.79 |
Environmental Specifications |
Operating Environment
|
Temperature |
0°C to 40°C/32°F to 104°F |
Humidity |
10% to 90% (non-condensing) |
Storage Environment |
Temperature |
-30°C to 70°C/-22°F to 158°F |
Humidity |
10% to 90% |
MTBF (hrs) |
43,800 |
