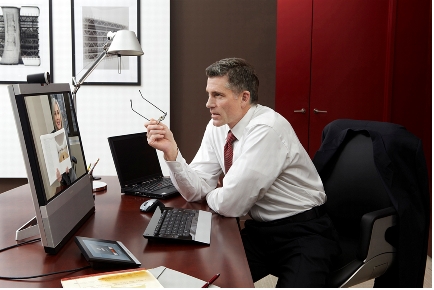

Видеотерминал Cisco EX90 - NPP, Touch UI

Цена: 717201 руб

Артикул: CTS-EX90-K9
Производитель:Cisco
Доставка: от 800 р. по Москве
Наличие:Под заказ

Table 1. Product Specifications

Product Compatibility

Fully compatible with standards-compliant telepresence and video systems

Software Compatibility

Cisco TelePresence Software Version TC4.0 or later

Components

Fully integrated unit including:

• Codec
• Display
• Camera
• Microphone and loudspeakers
• Cables including: VGA-to-DVI-I cable, DVI-D cable, 3.5-mm jack audio cable, LAN cable, power adapter, and power cable

Display

• EX90
• 24-in. LCD monitor
• Resolution: 1920 x 1200 (16:9)
• Contrast ratio: 1000:1
• Viewing angle: 160°
• Response time: 5 ms
• Brightness: 300cd/m2
• 5° - 15° tilt
• EX60
• 21.5-in. LCD monitor (with LED backlight)
• Resolution: 1920 x 1080 (16:9)
• Contrast ratio: 1000:1
• Viewing angle: 170°
• Response time: 5 ms
• Brightness: 225cd/m2

PC and second-source video input

DVI-I

EX90: HDMI In.

Supported PC input resolutions

EX90: SVGA (800 x 600) to WUXGA (1920 x 1200)

EX60: SVGA (800 x 600) to 1080p (1920 x 1080)

Camera

• Cisco TelePresence PrecisionHD design
• Resolutions: 1080p30 and 720p60
• Auto focus
• Integrated privacy shutter
• Document camera mode
• Multicoated all-glass optics
• 1/3-in., 2.1 megapixel CMOS sensor

EX90

• Horizontal field of view: 45°-65°
• Vertical field of view: 40°-27°
• Focus distance 0.3-infinity
• Optical, motorized zoom

EX60

• Horizontal field of view: 50°
• Vertical field of view: 29°
• Focus distance 0.1-infinity

Audio system

• Two stereo front speakers
• Integrated full-range microphone
• One 3.5-mm line-in jack for PC or other audio source
• Two 3.5-mm jack for headset
• Wideband handset
• Bluetooth-ready
• Integrated subwoofer (EX90 only)
• Support for Performance Mic 20 (EX90 only)
• HDMI audio input/output (EX90 only)

User interface

Cisco TelePresence touch screen

• Eight-inch projected capacitive touch screen
• Resolution: 800 x 480

Language support

English

Physical dimensions (H x L x D)

Cisco TelePresence System EX90 main unit: 21.4 x 22.3 x 6.8 in. (54.5 x 56.7 x 17.3 cm)

Cisco TelePresence System EX60 main unit: 20.0 x 20.5 x 5.4 in. (50.8 x 52 x 13.8 cm)

• Cisco TelePresence touch screen: 1.7 x 9.0 x 5.7 in. (4.4 x 22.8 x 14.5 cm)
• Cisco TelePresence touch screen with headset: 3.0 x 11.4 x 7.4 in. (4.4 x 22.8 x 14.5 cm)
• Cable length: 47 in. (120 cm)

Weight

Cisco TelePresence System EX90 main unit: 24.2 lb
(11.0 kg)

Cisco TelePresence System EX60 main unit: 12.9 lb
(5.85 kg)

• Cisco TelePresence touch screen: 1.4 lb (0.64).
• Cisco TelePresence touch screen with handset: 2.1 lb (0.94 kg)

Power

Autosensing power supply

100-240 VAC, 50/60 Hz

EX90: 150 watts max EX60: 75 watts max

Temperature range

Operating temperature and humidity:

• Ambient temperature: 32 to 95°F (0 to 35°C)
• Relative humidity (RH): 10 to 90%
• Storage and transport temperature at RH 10-90% (noncondensing): -4 to 140°F (-20 to 60°C)

Approvals and compliance

• Directive 2006/95/EC (Low-Voltage Directive) - Standard EN 60950-1
• Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class A - Standard EN 55024 - Standard EN 61000-3-2/-3-3
• Approved according to UL 60950-1 and CSA 60950-1-07
• Complies with FCC15B Class A

Table 2. Video and Audio Specifications

Bandwidth

H.323/SIP up to 6 Mbps point-to-point

Video standards

• H.261
• H.263
• H.263+
• H.264

Video features

• Widescreen: 16:9
• Advanced screen layouts
• Intelligent video management
• Local auto layout

Live video resolutions (encode/decode)

• 176 x 144@30 fps (QCIF)
• 352 x 288@30 fps (CIF)
• 512 x 288@30 fps (w288p)
• 576 x 448@30 fps (448p)
• 768 x 448@30 fps (w448p)
• 704 x 576@30 fps (4CIF)
• 1024 x 576@30 fps (w576p)
• 640 x 480@30 fps (VGA)
• 800 x 600@30 fps (SVGA)
• 1024 x 768@30 fps (XGA)
• 1280 x 1024@30 fps (SXGA)
• 1280 x 720@30 fps (720p30)
• 1280 x 768@30 fps (WXGA)
• 1920 x 1080@30 fps (1080p30)*
• 1440 x 900@30 fps (WXGA+)*
• 1680 x 1050@30 fps (WSXGA+)*
• 1600 x 1200@30 fps (UXGA)*
• 512 x 288@60 fps (w288p60)*
• 768 x 448@60 fps (w448p60)*
• 1024x576@60 fps (w576p60)*
• 1280x720@60 fps (720p60)

* Requires premium resolution option

Audio standards

• G.711
• G.722
• G.722.1
• 64/128 kbps MPEG4 AAC-LD
• AAC-LD stereo

Audio features

• CD-quality 20-kHz stereo
• Acoustic echo canceling
• Automatic gain control
• Automatic noise reduction
• Active lip synchronization

Dual stream

• H.239 (H.323) dual stream
• BFCP (SIP) dual stream
• EX90 supports resolutions up to 1080p in both main stream and dual stream simultaneously
• EX60 supports resolutions up to 720p in both main stream and dual stream simultaneously

Table 3. Network, Security and Management Specifications

Protocols

• H.323
• SIP

Network interfaces

• Internal 2-port Ethernet switch
• One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for PC
• One LAN/Ethernet (RJ-45) 10/100/1000 Mbps for LAN

Other interfaces

• Bluetooth for future applications
• Two USB device for future applications (EX90)
• One USB device for future applications (EX60)

IP network features

• Domain Name System (DNS) lookup for service configuration
• Differentiated Services (QoS)
• IP adaptive bandwidth management (including flow control)
• Auto gatekeeper discovery
• Dynamic playout and lip-sync buffering
• H.245 DTMF tones in H.323
• Date and time support with Network Time Protocol (NTP)
• Packet loss-based downspeeding
• DNS-based URI dialing
• TCP/IP
• Dynamic Host Configuration Protocol (DHCP)
• IEEE 802.1x network authentication
• IEEE 802.1q VLAN

Firewall traversal

• Cisco TelePresence Expressway Technology
• H.460.18 and H.460.19 Firewall Traversal

Embedded encryption

• H.323/SIP point-to-point
• Standards-based: H.235 v2 and v3 and Advanced Encryption Standard (AES)
• Automatic key generation and exchange
• Supported in dual stream

Security features

• Management via Secure HTTP (HTTPS) and Secure Shell (SSH) Protocol
• IP administration password
• Menu administration password
• Disable IP services
• Network settings protection

MultiSite

EX90 only

• 4-way 720p30 Continuous Presence (CP) MultiSite
• Full individual audio and video transcoding
