Конференцсвязь Cisco CTS-PHD-1080P4XS=

Цена: 427423 руб

Артикул: CTS-PHD-1080P4XS=
Производитель:Cisco
Доставка: от 800 р. по Москве
Наличие:В транзите

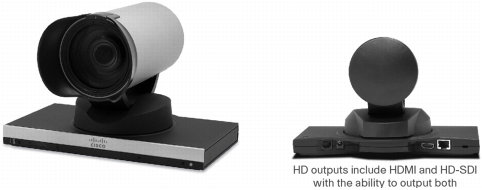

PrecisionHD 1080p x4


Table 1. Cisco TelePresence PrecisionHD Camera Features

Feature

Cisco TelePresence PrecisionHD Camera - 720p

Cisco TelePresence PrecisionHD Camera - 1080p

Features

• High-definition camera designed by Cisco
• Improves resolution at any bandwidth
• Fast and smooth video handling
• Automatic or manual focus, brightness, and white balance
• In-call LED display
• Power indicator
• Auto-iris sensor
• Ultimate high-definition camera designed by Cisco
• Full 1080 HD
• Upside-down mounting with automatic flipping of picture
• Dual high-definition multimedia interface (HDMI) and high-definition serial digital interface (HD-SDI) output
• Improved autofocus with multifocus points
• Improved white balance with ambient light sensor
• Automatic or manual focus, brightness, and white balance
• In-call LED display and power indicator

Performance

• 1280 x 720 pixels progressive at 30 frames per second (fps)
• 7 x zoom
• 1/3-inch complementary metal oxide semiconductor (CMOS), 10 to -20° tilt, and + or -90° pan
• Focus distance of 0.3m to infinity
• 42° vertical field of view
• Voice-activated camera positioning
• 1920 x 1080 at 60 and 50 fps (HDMI only); 1920 x 1080 at 30 and 25fps; and 1280 x 720 at 60, 50, 30, and 25fps
• 12 x zoom
• 1/3-inch CMOS, 15 to -25° tilt, and + or -90° pan
• 43.5° vertical field of view
• 72° horizontal field of view
• Focus distance of 0.3m to infinity
• Daisy-chain support (Visca protocol camera)

Specifications

• Width: 8.8 inches (22.2 cm)
• Depth: 5.7 inches (14.5 cm)
• Height: 6.6 inches (16.7 cm) (at maximum tilt)
• Weight: 3.75 lb (1.7 kg)
• Height (at maximum tilt): 6.8 inches (17.2 cm)
• Width: 8.7 inches (22 cm)
• Depth: 5.8 inches (14.7 cm)
• Weight: 3.95 lb (1.8kg)

Table 2. Ordering Information

Product Name

Part Number

Cisco TelePresence PrecisionHD Cameras - 1080p

PrecisionHD Camera - 1080p12x Camera and Kit

CTS-PHD-1080P-KIT=

Comes with: Cisco PrecisionHD Camera - 1080p12x, audio/video cables, power supply

PrecisionHD Camera 1080p Option Spares - cameras ONLY, cables not included

PrecisionHD 1080p12X Unit - Gray

CTS-PHD-1080P12XG=

PrecisionHD 1080p12X Unit - Silver

CTS-PHD-1080P12XS=

PrecisionHD 1080p4x Unit - Silver - use with Cisco Codec C40 based products

CTS-PHD-1080P4XS=

PrecisionHD 1080p4x Unit - Silver - use with Cisco Codec C20 based products

CTS-PHD1080P4XS1=

Cable Accessories Kit for PrecisionHD Camera 1080p12x and 4x

ACC-PHD1080P=

Comes with: audio/video and camera cables for Precision 1080p12x and 4x cameras

Audio/Video Cable and Power Supply Options

HDMI to HDMI cable, 5 meters

CAB-2HDMI-5M=

Adaptor HDMI to DVID cable

ADPT-HDMI-DVID=

MXP Power Supply WAVE II/PHD cameras

PSU-CAM-V=

Cisco TelePresence Precision HD Cameras - 720p

Precision HD Camera Option Kit 720p

PHD-KIT=

Comes with: Silver PrecisionHD Camera 720p audio/video and camera cables, power supply and rack mounts

PrecisionHD Camera, 720p

CTS-PHD=

Comes with: Silver PrecisionHD Camera 720p, camera cables



Audio/Video Cable and Power Supply Options

HDMI to HDMI cable, 5 meters

CAB-2HDMI-5M=

Adaptor HDMI to DVID cable

ADPT-HDMI-DVID=

MXP Power Supply WAVE II/PHD cameras

PSU-CAM-V=
