Коммутатор Planet ISW-621S15

Цена: 15824 руб

Артикул: ISW-621S15
Производитель:Planet
Доставка: от 800 р. по Москве
Наличие:Под заказ

Указанная цена актуальна при заказе от 25 000 руб., при заказе на меньшую сумму, стоимость может измениться в сторону увеличения.

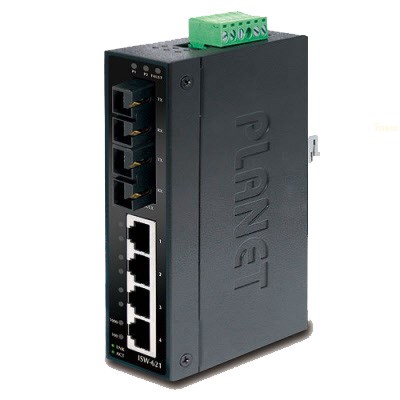

IP30 Slim Type 4-Port Industrial Ethernet Switch + 2-Port 100Base-FX(15KM) (-10 - 60 C)


PLANET has released the ISW-621/ISW-621S15, an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. Each of them is equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-621 has 2 100Base-FX multi-mode SC interfaces for transmission distance up to 2km, and the ISW-621S15 has 2 100Base-FX single-mode SC interfaces for transmission distance up to 15km, both of them operate reliably in Heavy Industrial demanding environments. Meanwhile, the compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space.


Stable operating performance under difficult environments


The ISW-621 / ISW-621S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degrees C, the ISW-621/ISW-621S15 can be placed in almost any difficult environment. The ISW-621/ISW-621S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.


Robust Switch performance


The ISW-621/ISW-621S15 each provides 4 10/100Base-TX Ethernet ports and 2 100Base-FX optic-fiber SC interfaces, and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The flow control function allows the ISW-621/ISW-621S15 to have fast and reliable data transfer.

All of the RJ-45 copper interfaces in the ISW-621/ISW-621S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
