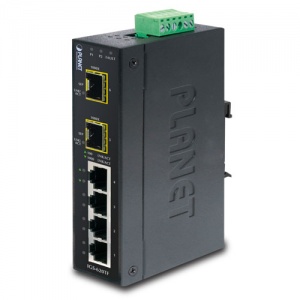

Коммутатор Planet IGS-620TF

Цена: 21870 руб

Артикул: IGS-620TF
Производитель:Planet
Доставка: от 800 р. по Москве
Наличие:В наличии

Указанная цена актуальна при заказе от 25 000 руб., при заказе на меньшую сумму, стоимость может измениться в сторону увеличения.

IP30 Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Switch (-40 to 75 degree C)


IGS-620TF

Промышленный 6-портовый Гигабитный Коммутатор для суровых промышленных условий. Он оснащен 4-портами 10/100/1000Base-T с разъемом RJ-45 и 2 дополнительными портами 100/1000Base-X SFP волоконно-оптическими интерфейсами, реализованными в IP30 металлическом корпусе с системой резервного питания. IGS-620TF хорошо подходят для развертывания системы видеонаблюдения  и обеспечения контроля и беспроводных услуг в климатически сложных условиях, с широким температурным диапазоном от -40 до + 75 градусов.

Спецификация


Модель IGS-620TF
Hardware Specifications
Copper Ports 4 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-Negotiation
SFP / mini-GBIC Slots 2 1000Base-SX/LX/BX SFP interfaces (Port-5 and Port-6)
Compatible with 100Base-FX SFP
DIP Switch DIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX
DIP-3: Switch mode / Fiber Redundant mode
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
LED 3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
■ Green: 1000 LNK/ACT
■ Orange:100 LNK/ACT
1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
■ Green: LNK/ACT
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 type metal case
Installation DIN rail kit and wall mount ear
Dimensions (W x D x H) 135 x 87 x 32mm
Weight 503g
Power Requirements DC 12~48V or AC 24V
Redundant power with polarity reverses protection function
Power Consumption / Dissipation 7.2watts / 24BTU
Cable Twisted-Pair
10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
1000Base-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
1000Base-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
kilometers (vary on SFP module)
100Base-FX:
● 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2
kilometers
● 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
(vary on SFP module)
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 1K entries
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex
Switch fabric 12Gbps
Throughput (packet per second) 8.93Mpps@64bytes
Maximum Transmit Unit 9216 bytes
Speed SX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000Mbps
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Environment
Temperature Operating: -40~75 degree C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (Non-condensing)
Storage: 5~95% (Non-condensing)
